Forces in Equilibrium

Procedure

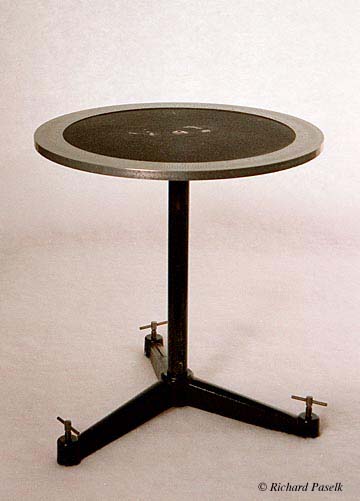

Level the force table and put one of the three pulleys at the angle 0^o.
Add 200 grams of mass to each of the three hangers, and remember that the mass of the hanger itself is 50 grams.
Arrange the other two pulleys such that the ring connecting the different strings remains fixed at the center of the table (not touching the central post). Tap the table gently to ensure that the ring remains fixed. At this point, the ring is in equilibrium.
Record the tension in each string T₁, T₂, T₃ and the angular position of each pulley ₁, ₂, ₃.
Find the x and y components of each tension force. Take the origin to be the central post, the positive x-axis to extend through the 0^o mark, and the positive y-axis to extend through the 90^o mark.
Find the resultant force vector algebraically by adding the respective components of the individual string tensions.
Using the protractor provided, add the three tension force vectors graphically by drawing arrows of an appropriate length in the correct direction and connecting them tail-to-head. Try to use an entire page of graph paper. Do not force the triangle to close; experimental error might prevent this.
Repeat the steps above for three masses not all the same (e.g. 100 grams on hanger 1; 200 grams on hanger 2; and 300 grams on hanger 3).

Take the error in all the masses to be m = 1 gram.
Remember that g = 9.80 m/s² ± 0.01 m/s².
Take the error in the angles measured on the force table to be negligible.
Find the errors in all the tension force components.
Find the error in the resultant force x and y components using the formula from the Error Analysis Lab: F_x = [ (T_1x) ² + (T_2x) ² + (T_3x) ² ]^½
In this experiment, we assume that the ring is massless. If the central ring were to have considerable weight (comparable to the string tensions), what new steps would be required in this experiment? Assume that you can not add more mass to the hooks.
Identify at least two sources of statistical error.
Identify at least two sources of systematic error.
