Introduction to Simple Harmonic Motion Lab: Cart and Spring System

Welcome to the Simple Harmonic Motion (SHM) laboratory! In this experiment, we will investigate the motion of a mass-spring system and explore the fundamental principles governing oscillatory motion. Simple Harmonic Motion is a crucial concept in physics that describes systems where a restoring force proportional to displacement results in periodic motion. This experiment will allow you to experimentally verify key SHM properties, including period, frequency, and the spring constant.

The governing equation for SHM is derived from Hooke’s Law:

𝐹=βˆ’π‘˜π‘₯

where π‘˜ is the spring constant and π‘₯ is the displacement from equilibrium. From this, we derive the equation for the period of oscillation:

𝑇=2πœ‹\sqrt{\frac{π‘š}{π‘˜}}

where π‘š is the mass attached to the spring.

What You Will Learn

By the end of this lab, you will be able to:

  • Understand the principles of SHM and the role of restoring forces.
  • Experimentally measure the oscillatory motion of a mass-spring system.
  • Determine the spring constant using two different methods.
  • Analyze position, velocity, and acceleration data to confirm SHM characteristics.
  • Evaluate how added mass influences oscillation period.

Overview of the Experiments

This lab is divided into two main experiments:

Experiment 1: Measuring the Spring Constant from a Single Mass - Set up a cart attached to a vertical spring and allow it to oscillate. - Record position and velocity data using the Pasco Wireless Smart Cart. - Determine the period of oscillation and use it to calculate the spring constant.

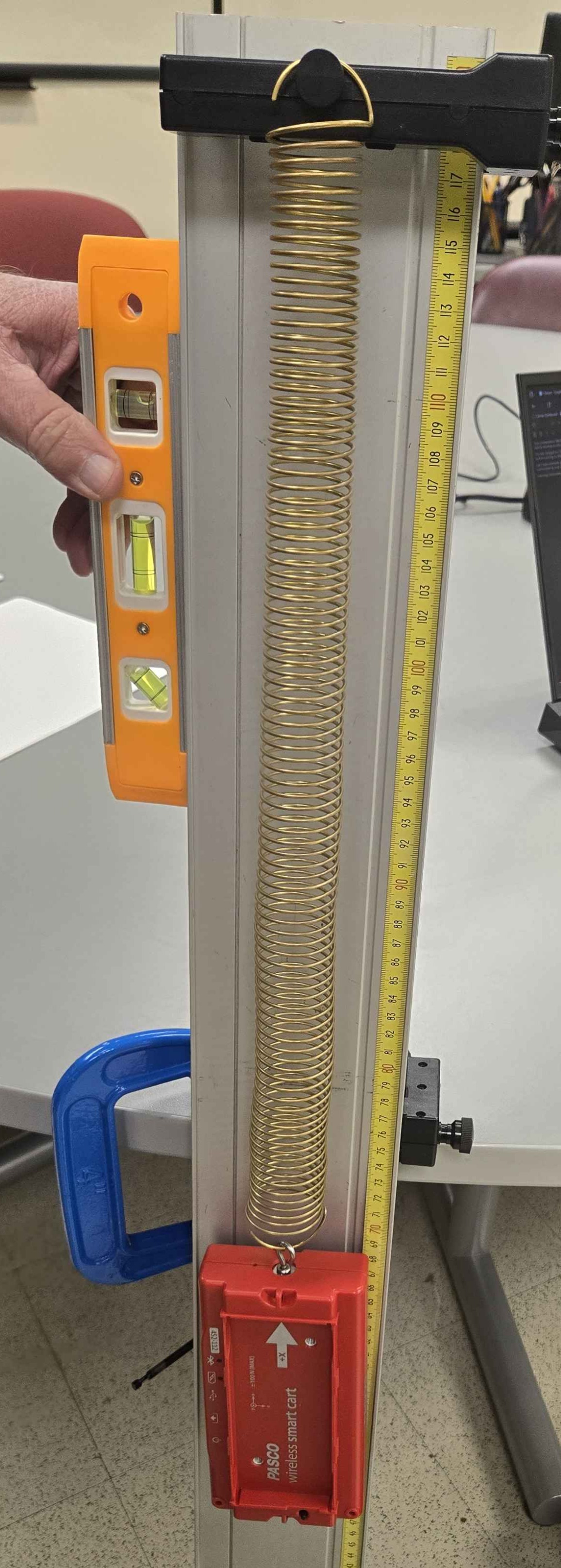

Figure 1: Smart cart suspended from spring attached to nearly vertical track. Cart is carefully placed in grooves of track due to slight inclination of track and can oscillate along it.

Experiment 2: Investigating the Effect of Mass on Oscillation - Add different masses to the cart and measure their impact on the oscillation period. - Use graphical analysis to determine the spring constant from multiple trials. - Compare the experimental results from both methods.

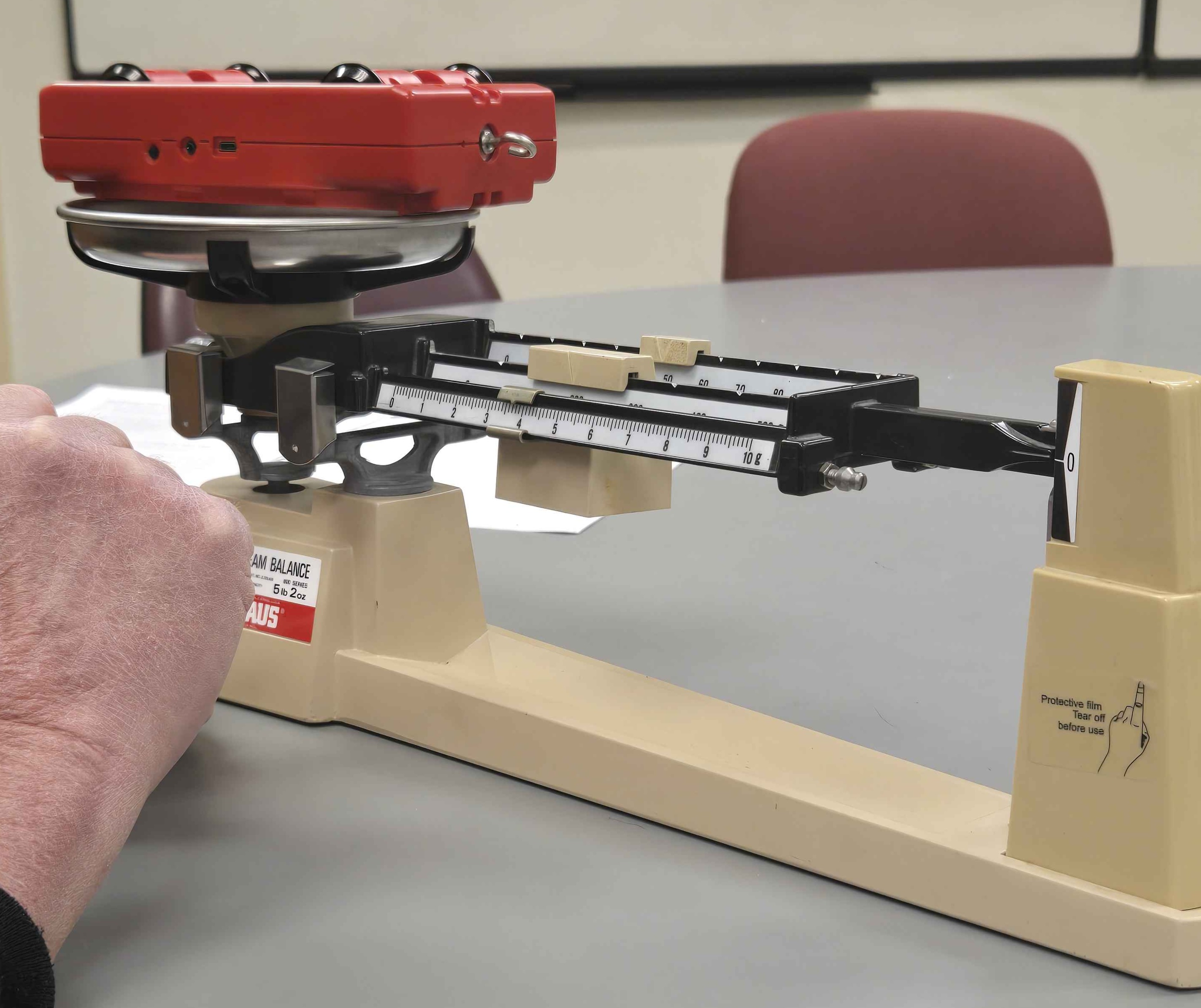

Figure 2: Triple beam balance used to measure mass of Smart Cart and added weights.

Equipment You Will Be Using - Pasco Wireless Smart Cart – Measures position, velocity, and acceleration. - Spring – Provides the restoring force necessary for oscillatory motion. - Cart Track – Ensures smooth motion along a guided path. - Ruler – Measures displacement and oscillation wavelength. - Clamp – Secures the track to the table for stability. - Small Weights – Alters the system’s mass to analyze its effect. - Scale – Measures the mass of the cart and weights.

Important Tips for Success - Accurate Measurements: Ensure the system is stable and properly aligned before taking readings. - Smooth Oscillations: Gently displace the cart without introducing additional forces. - Proper Data Recording: Use consistent sampling rates and note any anomalies in the motion. - Compare Theoretical vs. Experimental Values: Consider uncertainties and possible sources of error.

By carefully following these procedures, you will gain a deeper understanding of simple harmonic motion and the methods used to analyze oscillatory systems. Enjoy your experiment!
