Introduction to the Parallel Plate Capacitor Lab¶
Welcome to the Parallel Plate Capacitor Lab! In this experiment, we will delve into the fascinating world of capacitance and electric fields. Capacitors are fundamental components in electronic circuits, storing electrical energy and playing crucial roles in filtering, timing, and energy storage applications.
This lab will focus on parallel plate capacitors, the simplest type of capacitor, allowing us to explore the factors that influence capacitance and how capacitors can be used in practical applications. We will build our own simple capacitor and then use a pre-made parallel plate capacitor to investigate how its properties can be utilized for sensing liquid levels.
What You Will Learn¶
By the end of this lab, you will be able to:
- Understand the concept of capacitance and its relationship to charge and voltage.
- Identify and explain the factors that affect the capacitance of a parallel plate capacitor, including plate area, plate separation, and the dielectric material.
- Learn about the role of dielectric materials in capacitors and how they increase capacitance.
- Experimentally construct a simple parallel plate capacitor and measure its capacitance.
- Measure the dielectric constant of different materials.
- Apply the principles of capacitance to create a liquid level sensor.
- Compare experimental measurements with theoretical predictions and analyze any discrepancies.
- Understand and quantify uncertainties in your measurements.
Overview of the Experiments¶
This lab is divided into three main experiments:
Experiment 1: Building Your Own Capacitor
- In this hands-on activity, you will construct your own parallel plate capacitor from simple materials like aluminum foil, paper, and wires.
- You will learn the basic components of a capacitor and physically assemble them.
- You will then measure the capacitance of your homemade capacitor using a multimeter, getting a direct experience of capacitance measurement.
- This part emphasizes the practical construction and basic measurement of capacitance.
Experiment 2: Studying the Dielectric Material of Your Capacitor
- In this experiment, you will investigate the role of the dielectric material.
- You will modify your capacitor by using different dielectric materials like printing paper, cardstock, plastic wrap, and wax paper.
- By measuring the capacitance with each dielectric, you will experimentally determine how the dielectric constant of the material affects capacitance.
- You will also measure the thickness of each dielectric and compare your experimental results to the theoretical formula for parallel plate capacitance to estimate the dielectric constant of each material.
Experiment 3: Measuring Water Level with a Parallel-Plate Capacitor
- This experiment explores a practical application of parallel plate capacitors: liquid level sensing.
- You will use a specially designed parallel plate capacitor setup and observe how its capacitance changes as you fill it with water to different levels.
- Since water and air have different dielectric constants, the capacitance will vary with the water level.
- You will use your measurements to calibrate the capacitor as a water level sensor and predict the water level based on capacitance readings, demonstrating a real-world application of capacitance.
Equipment You Will Be Using¶

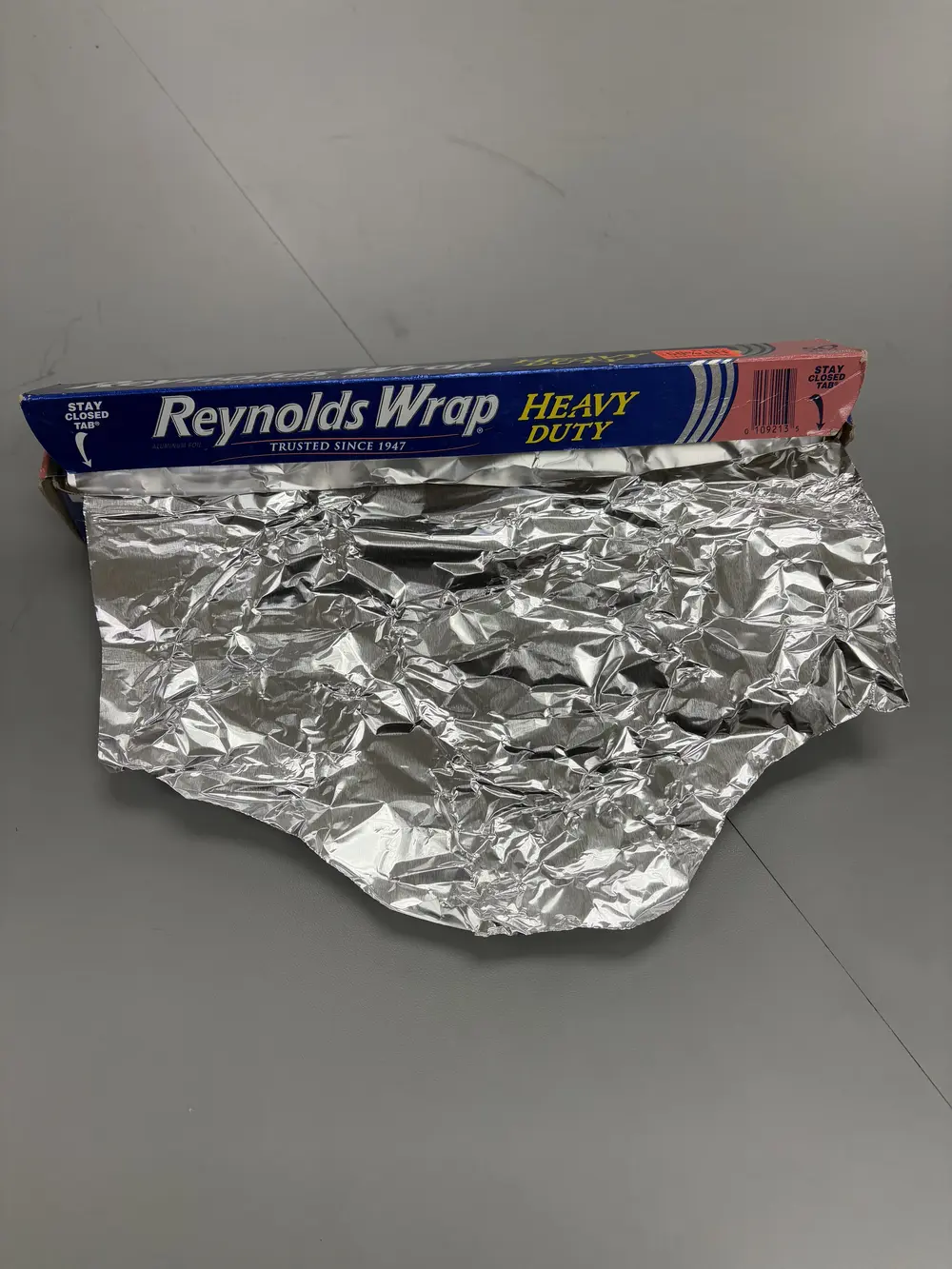

- Aluminum Foil: To create the conductive plates of your homemade capacitor.

-
Dielectric Materials: Printing paper, cardstock, plastic wrap – for exploring different dielectrics. [TA: Insert Photo of Dielectric Materials here]
-

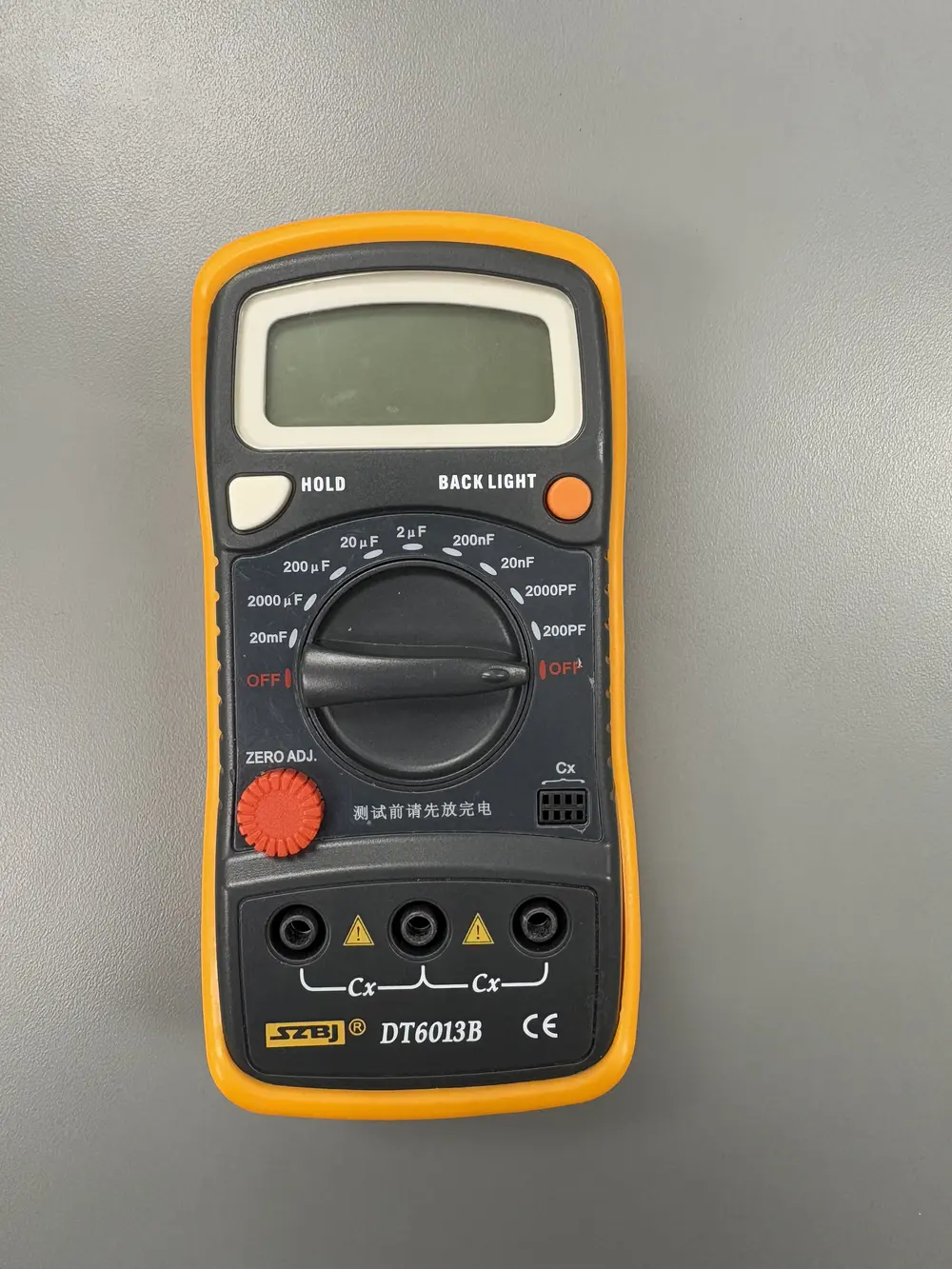

Multimeter with Capacitance Measurement: To measure the capacitance of your capacitors.

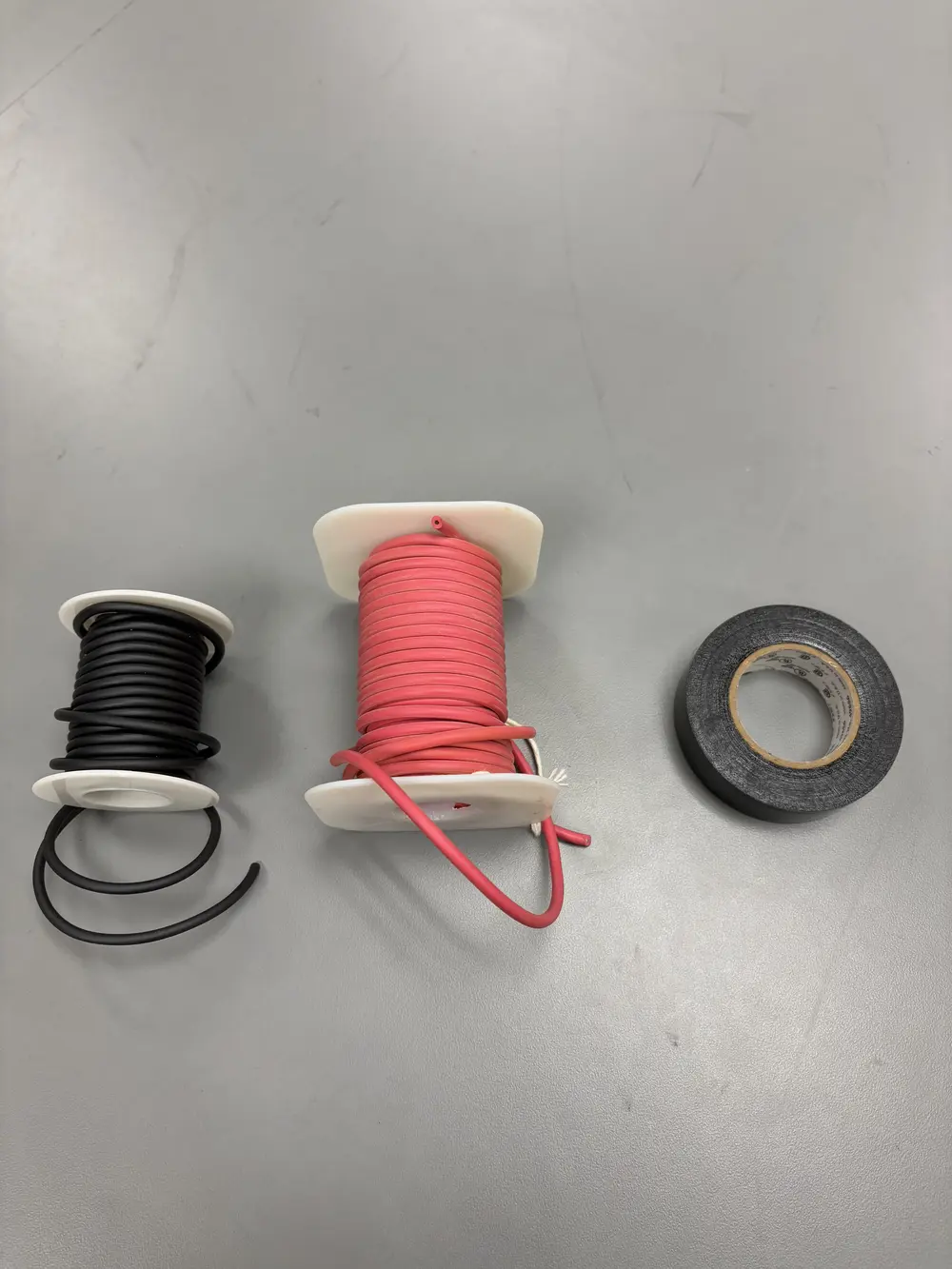

- Wires and Tape: For connecting to your homemade capacitor plates.

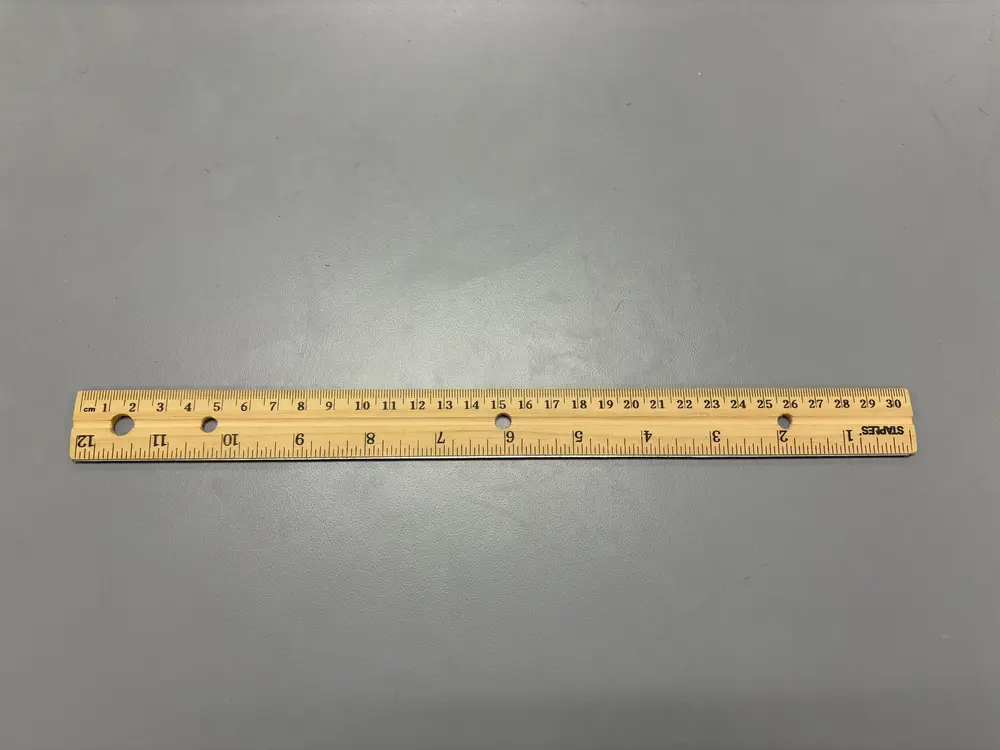

- Ruler: To measure dimensions of foil and capacitor plates.

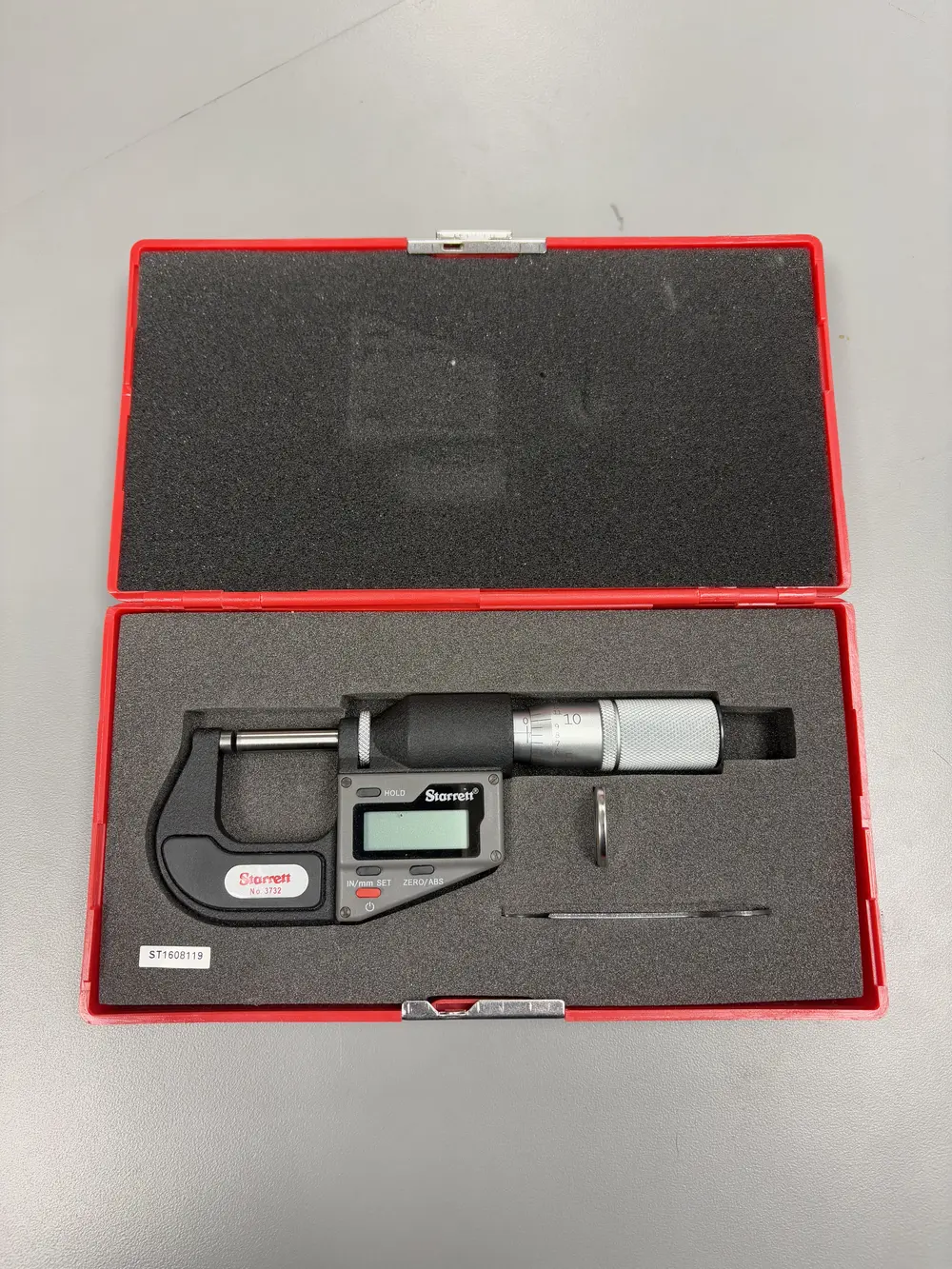

- Micrometer: To precisely measure the thickness of dielectric materials and capacitor plate separation.

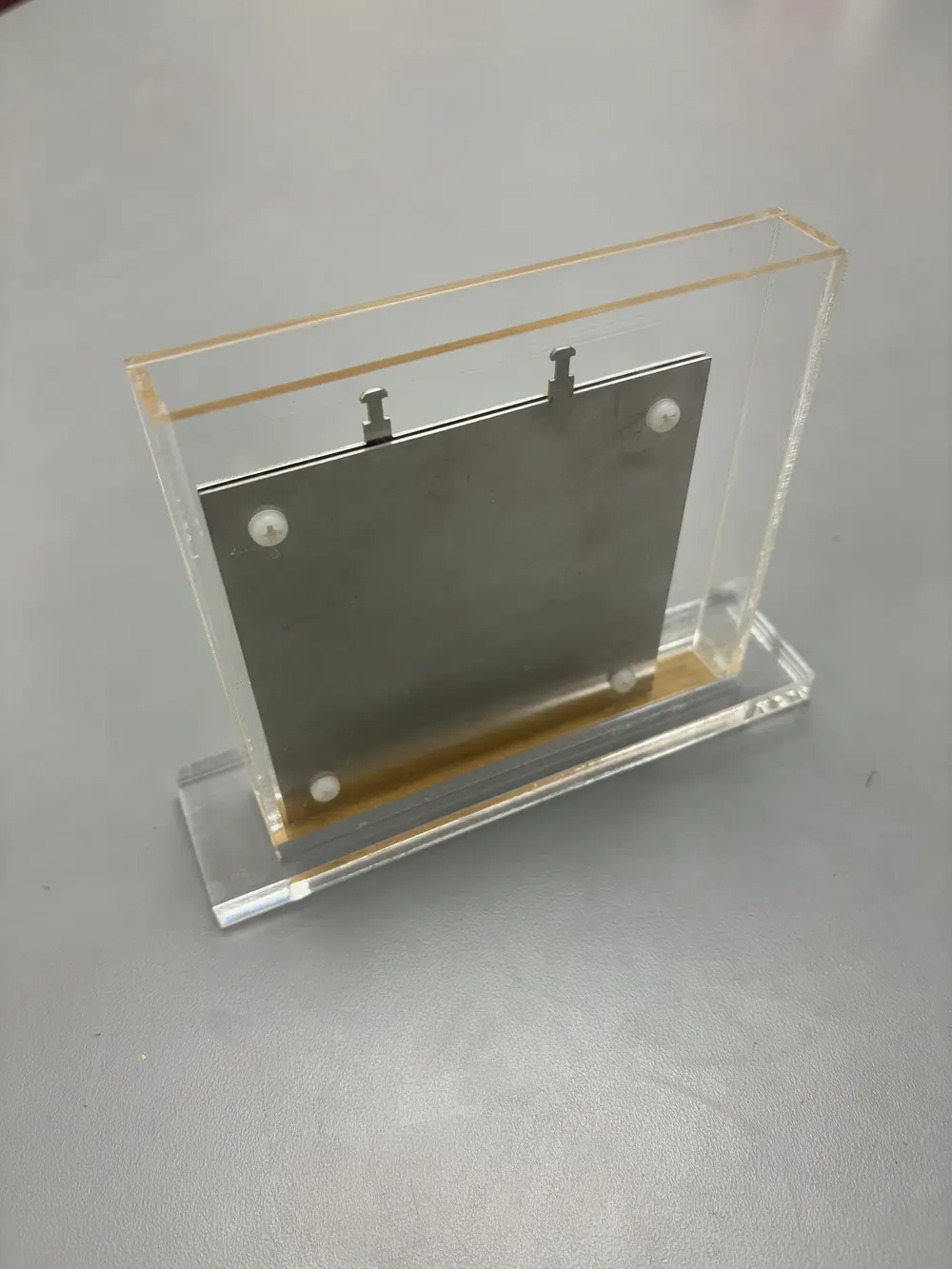

- Parallel Plate Capacitor Setup for Water Level Measurement: Pre-made parallel plate capacitor designed for liquid level experiments.

- Water and Graduated Cylinder/Pipettes: To fill the capacitor with controlled amounts of water.
Experiment 1: Building Your Own Capacitor
- Foil Size and Alignment: Cut the aluminum foil rectangles as accurately as possible to approximately 10 cm x 10 cm. Ensure the two foil plates are well-aligned and the dielectric (paper) is completely sandwiched between them, preventing any direct contact between the foil sheets, which would cause a short circuit.
- Secure Connections: Make sure the wires or leads are firmly attached to the aluminum foil plates. Loose connections can lead to unstable capacitance readings. Tape the connections securely. Consider using alligator clips if available for more reliable connections.
- Multimeter Setting: Ensure your multimeter is set to the capacitance measurement mode (usually marked with 'F' for Farads) and that you select an appropriate measurement range.
- Photo Quality: When taking the photo of your capacitor and multimeter reading, make sure the capacitance value on the multimeter display is clear and readable in the photograph.
Experiment 2: Studying Dielectrics
- Consistent Capacitor Construction: When changing the dielectric material, try to keep other factors like foil area and plate alignment as consistent as possible to isolate the effect of the dielectric.
- Thickness Measurement: Measure the thickness of each dielectric material at several points using the micrometer and take an average to get a representative thickness. Estimate the uncertainty in your thickness measurements.
- Capacitance Stability: Allow the capacitance reading on the multimeter to stabilize before recording the value for each dielectric.
Experiment 3: Water Level Sensor
- Initial Capacitance (Air): Make sure to measure the initial capacitance of the water level capacitor before adding any water (at h = 0 cm). This is your baseline measurement.
- Water Level Steps: Add water in controlled 2 cm (or as specified in your worksheet) steps. Measure the capacitance after each addition and record the water level and capacitance values in your table.
- Water Level Uncertainty: Estimate the uncertainty in your water level measurements based on the graduations of your graduated cylinder or pipettes and your ability to read the water level accurately.
- Formula for Water Level Capacitor: Pay attention to the provided formula C=\frac{\epsilon_0}{d} a (a + (\epsilon_r^\text{water} -1)h) for the water level capacitor. Understand how each term relates to the capacitor's geometry and the presence of water as a dielectric.
