Worksheet 8: Time-Varying RL Circuits and High-Pass Filters

In this lab, you will investigate the behavior of RL circuits (resistor-inductor circuits) in response to both time-varying and frequency-varying inputs. These circuits are foundational in electronics for understanding inductance, transient response, and filtering behavior, especially in the context of signal processing. By applying square and sine wave inputs, you will explore how inductors behave in dynamic conditions and how RL circuits can function as high-pass filters.

Inductors and Time Constants

An inductor resists changes in current. When a voltage is applied across an inductor in series with a resistor, the current increases gradually according to the following exponential relationship:

  • Current rise: $$ I(t) = \frac{V_0}{R} \left( 1 - e^{-t/\tau} \right) $$
  • Inductor voltage drop: $$ V_L(t) = V_0 \cdot e^{-t/\tau} $$

The RL time constant \tau is given by: $$ \tau = \frac{L}{R} $$

It represents the characteristic time for the current to reach approximately 63% of its final value or to decay to 37% after the input is removed. This behavior is analogous to RC circuits but with current instead of voltage as the primary variable of interest.

High-Pass Filter Behavior

In the frequency domain, RL circuits act as high-pass filters. This means they allow high-frequency signals to pass through more effectively while attenuating low-frequency signals. This frequency-selective behavior is described by the voltage transfer function:

|H(f)| = \frac{V_{\text{out}}(f)}{V_{\text{in}}(f)} = \frac{L \cdot 2\pi f}{\sqrt{R^2 + (L \cdot 2\pi f)^2}}

The cutoff frequency f_c of the RL high-pass filter is:

f_c = \frac{R}{2\pi L}

At frequencies above f_c , the resistor voltage increases, demonstrating the filter's ability to "pass" high-frequency content.

Overview of Measurements

This lab consists of two main measurements:

Measurement 1: Observing RL Transient Response with a Square Wave

  • You will construct a series RL circuit and apply a square wave using a function generator.
  • The voltage across the inductor will be observed using an oscilloscope, revealing the characteristic exponential rise and fall associated with current transients.
  • The experimental time constant \tau_{\text{exp}} will be estimated and compared to the theoretical value using \tau = L/R .
  • You will learn about sensing resistors, parasitic effects, and good measurement practices when using oscilloscopes.

Measurement 2: Exploring Sine Wave Response and High-Pass Filter Behavior

  • The same RL circuit will now be driven by a sine wave, and the frequency will be varied across a broad range (e.g., 10 Hz to 100 kHz).
  • You will observe how the voltage across the resistor changes with increasing frequency.
  • This will illustrate the high-pass filter behavior of the circuit, as low-frequency voltages are attenuated and high-frequency voltages are passed more effectively.
  • Data will be collected and visualized through oscilloscope screenshots and a frequency response table.

Objectives

By the end of this lab, you will be able to: - Understand the transient behavior of RL circuits in response to step inputs.
- Analyze the time constant \tau = L/R and estimate it experimentally from oscilloscope data.
- Construct and evaluate an RL high-pass filter, analyzing its frequency response.
- Use function generators to produce time-varying signals and oscilloscopes to measure and analyze them.
- Compare theoretical and experimental results and identify causes of deviation (e.g., parasitic resistance or capacitance).

Materials List

  • Function Generator
  • Oscilloscope (preferably dual-channel)
  • Resistors: 1 kΩ
  • Inductors: 6.8 mH
  • Pasco RCL board

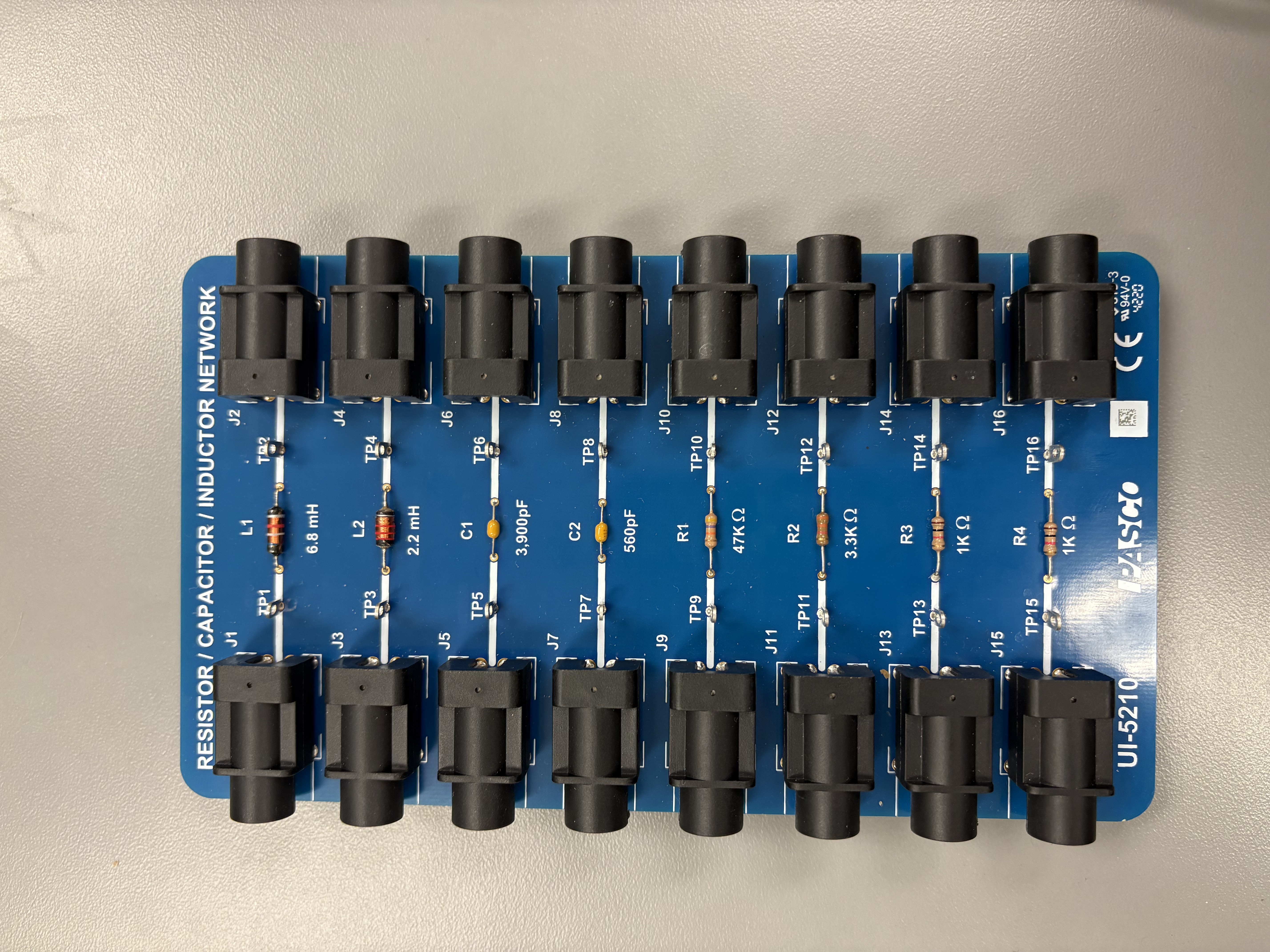

Figure 1: PASCO RCL board

Circuit Set-up

  • RL Circuit

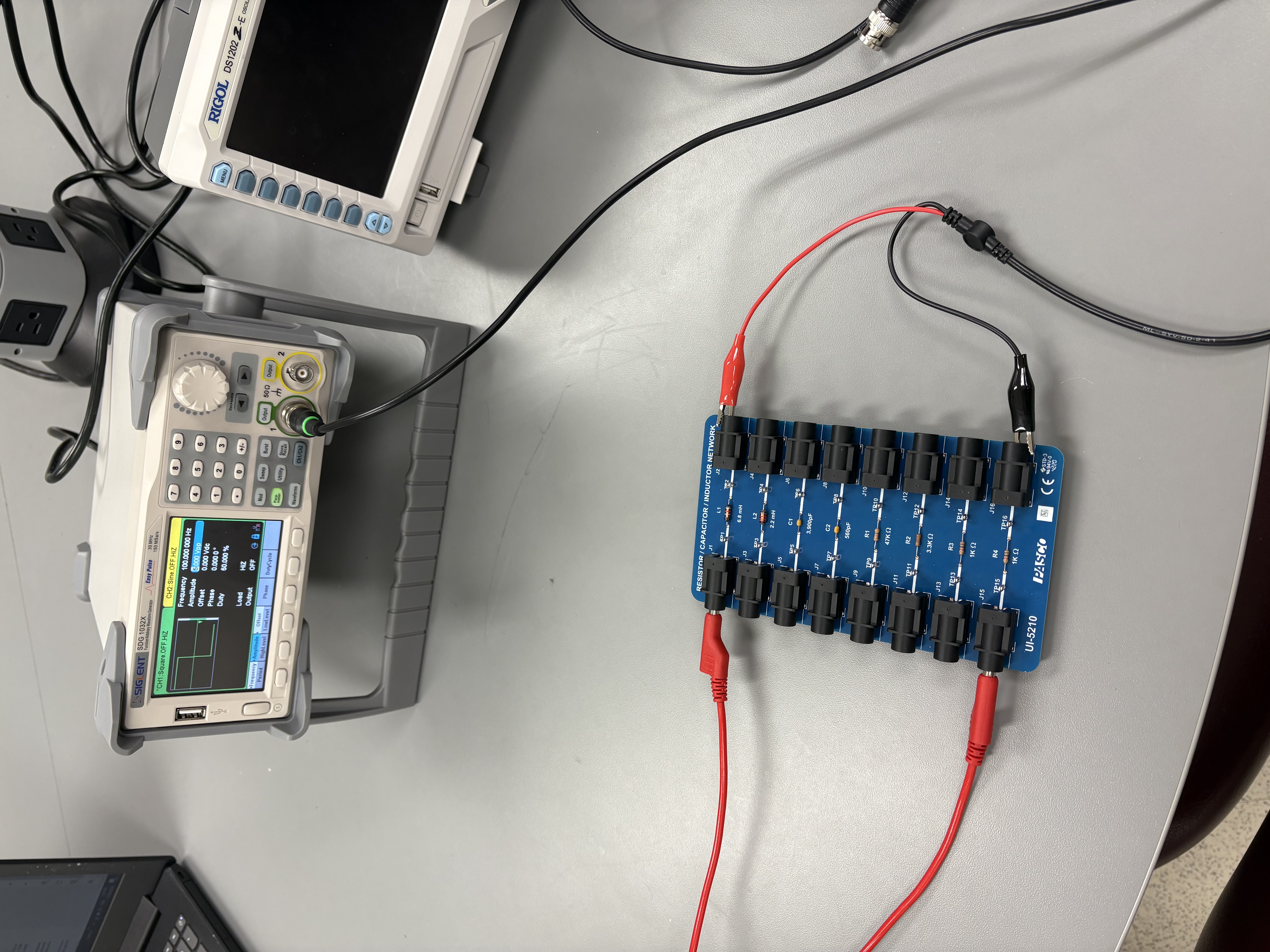

Figure 2: A resistor and inductor connected in series with the wavefunction generator as the voltage input.

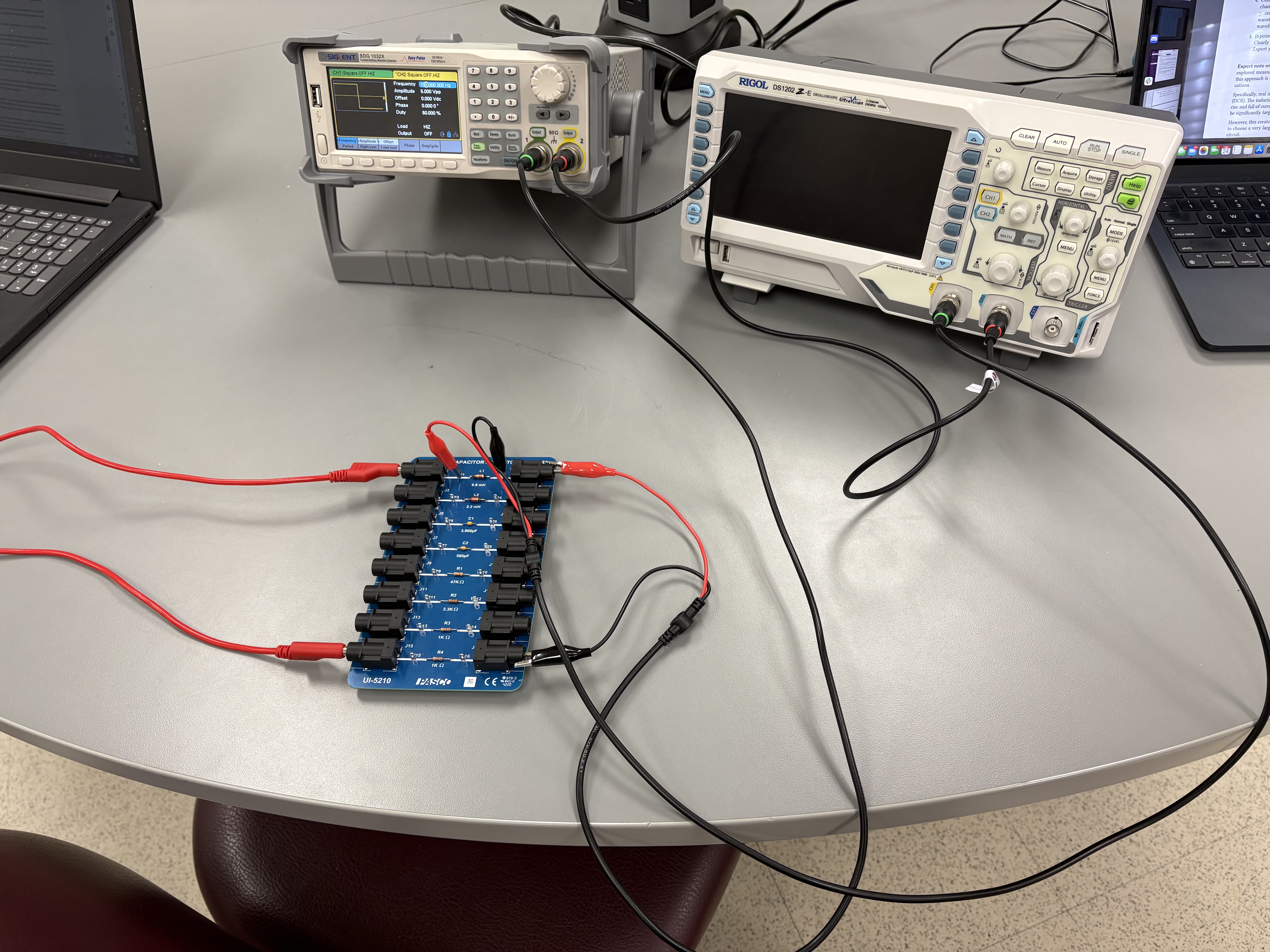

Figure 3: The RL circuit connected to the oscilloscope. Channel one of the oscilloscope is connected across the inductor and channel two of the oscilloscope is connected to the wave function generator directly.
