Forces in Equilibrium Prelab Assignment


Name:_______________________________ 4-digit Code Number:_______________________________

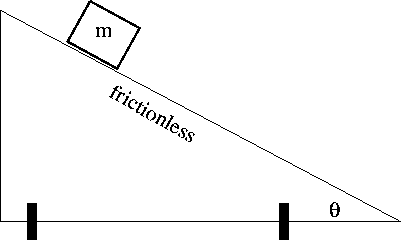

  1. A frictionless incline (the triangle below) is bolted to the floor so that it can not move. A block of mass m slides down the slope, which makes an angle theta with the horizontal.

    1. Draw a free-body diagram for the block, labeling all forces uniquely.















    2. Describe all the forces listed above in the following format:
      F1 acts on ________________ and is caused by _________________ .















    3. What is the magnitude of the normal force acting on the block?















    4. What is the magnitude of the acceleration of the block down the slope?
